Implement custom authentication for tools integration using request Lambda interceptor in AgentCore Gateway
When deploying AI agents with Amazon Bedrock AgentCore, organizations benefit from built-in modern support for OAuth 2.0, AWS Identity and Access Management (IAM), and API key authentication through Amazon Bedrock AgentCore Gateway. However, some enterprise environments still use legacy authentication mechanisms such as HTTP Basic Authentication (Basic Auth) (RFC 7617). The extensible architecture of AgentCore Gateway enables support for these authentication mechanisms through a request Lambda interceptor—custom code that runs each time an agent calls a tool.
In this post, we show you how to use a request Lambda interceptor to authenticate to a downstream tool API using system credentials, retrieving a service account credential from AWS Secrets Manager and constructing a Basic Auth header. This design keeps credentials isolated from the agent, designed to mitigate exposure through model-driven behavior such as prompt injection.
Important: Basic Auth is an antiquated technology that transmits credentials as Base64-encoded text and should not be used as a long-term authentication strategy. AWS recommends modernizing to OAuth 2.0, SAML, OpenID Connect, or IAM where possible. However, some organizations with legacy workloads choose to decouple authentication modernization from their agentic AI adoption, addressing each on independent timelines. If your environment requires Basic Auth integration as an interim measure, consult your AWS Solutions Architect to evaluate the security trade-offs before proceeding. We’re providing this post as a reusable implementation, but it shouldn’t be construed as an endorsement of Basic Auth, or considered suitable as a long-term solution.
Solution overview

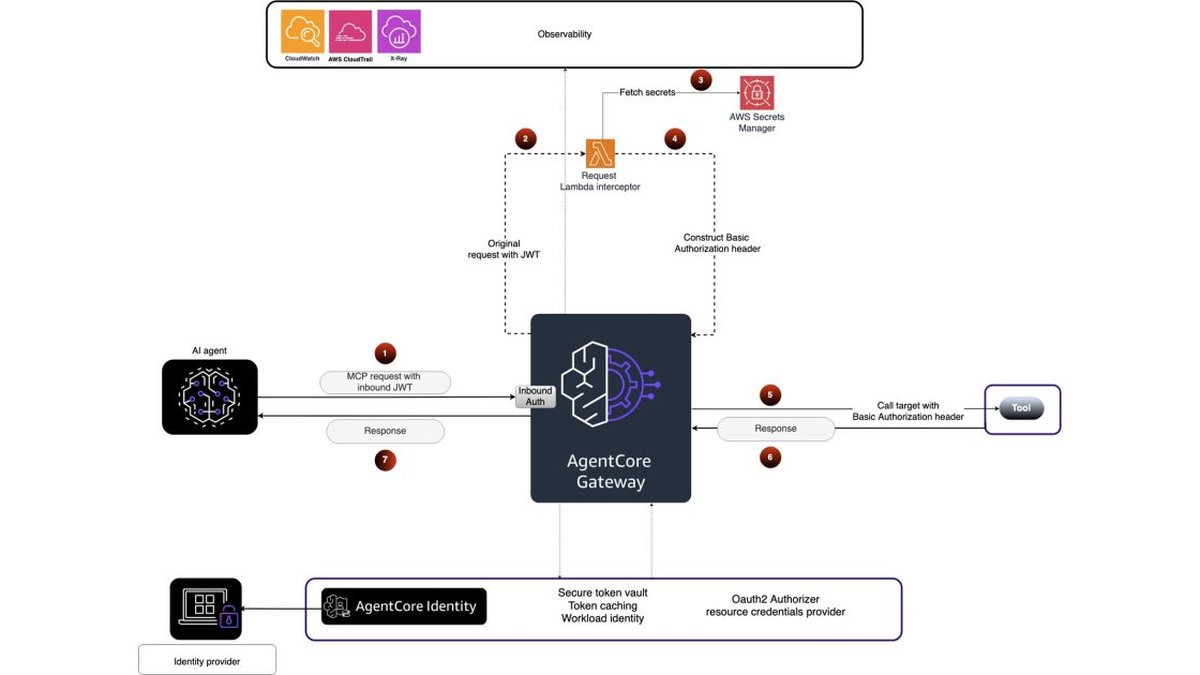

The solution uses a request Lambda interceptor in AgentCore Gateway to retrieve system credentials and construct a Basic Auth header for the downstream tool API. Figure 1 shows the end-to-end flow.
- The AI agent initiates a tool call over Model Context Protocol (MCP) to the gateway with an inbound JSON Web Token (JWT) issued by a configured identity provider (IdP). The MCP request body contains the tool name and any required parameters. The gateway’s inbound authentication layer validates the token against the IdP specified in the inbound authorizer configuration.
- After inbound authentication succeeds, the gateway invokes the request Lambda interceptor, passing the original request payload and headers, including the validated JWT and its embedded claims.
- The request Lambda interceptor re-validates the inbound JWT issued by the configured IdP as a defense-in-depth measure, then retrieves the system service account credential from Secrets Manager. The credential is a service account that authenticates the AI agent to the downstream tool.
- The interceptor then constructs a compliant Basic Auth header using the system credential and adds it to the outbound request. Because Basic Auth transmits credentials as Base64-encoded text (not encrypted), you must implement relevant compensating controls (e.g., ensure that all communication with the downstream tool API is over TLS, conduct two-person review of Lambda code changes, and so on).
Note: The system credential stored in Secrets Manager corresponds to a service account in Active Directory (AD). The credential lifecycle requires a one-time manual seed: a system administrator creates the service account in AD and stores the same initial credential in Secrets Manager (necessary because Secrets Manager can’t read a password back from AD). As a security best practice, trigger an immediate rotation after seeding to retire the human-known password using the built-in capabilities of Secrets Manager. From that point forward, Secrets Manager automates the rotation process, periodically generates a new password, and updates both Secrets Manager and AD simultaneously. This eliminates manual credential management in either system. At runtime, the request Lambda interceptor retrieves the current credential from Secrets Manager and presents it to the downstream tool, which validates it against AD. For implementation details on keeping both stores synchronized, see Rotate Active Directory credentials stored in AWS Secrets Manager.
- The AgentCore gateway forwards the adjusted request now carrying the custom authentication header to the downstream target tool.
- The downstream target tool authenticates the request, processes it, and returns the response to the gateway.
- The gateway relays the response back to the AI agent.
Implementation
The following steps walk through configuring the request Lambda interceptor and implementing the core of the authentication transformation logic. You can find the complete sample code at Implementing custom authentication for tools integration using Request Lambda Interceptor.
Step 1: Attach a request Lambda interceptor to your AgentCore Gateway
Configure the AgentCore gateway to invoke a request Lambda interceptor for authentication transformation before forwarding the request to the downstream tool.
Important: You must enable
passRequestHeaders
configuration. Without it, the request Lambda interceptor can’t receive the request header containing the inbound JWT, and the authentication pattern described in this post will not work.
The following example shows the gateway configuration:
Step 2: Validate the inbound JWT
The interceptor independently validates the JWT signature as a defense-in-depth measure, protecting against scenarios where the request Lambda interceptor could be invoked through a path that bypasses gateway validation. It fetches the identity provider’s JSON Web Key Set (JWKS) (cached across warm Lambda invocations to avoid repeated network calls), verifies the token’s signature, expiration, and issuer, then returns the decoded claims.
The following code demonstrates JWT validation:
Step 3: Retrieve system credentials from Secrets Manager
The interceptor retrieves the system service account credential from Secrets Manager. This credential authenticates the AI agent to the downstream tool. The secret is encrypted with a customer-managed AWS Key Management Service (AWS KMS) key and cached in memory for the configured time-to-live (TTL) to minimize API calls while ensuring rotated credentials are picked up promptly.
The following code retrieves the credential from Secrets Manager:
IAM permissions: The interceptor’s execution role requires secretsmanager:GetSecretValue
scoped to the specific secret Amazon Resource Name (ARN), and kms:Decrypt
scoped to the KMS key used to encrypt it. Follow the principle of least privilege by restricting the resource ARN rather than using wildcards.
Note: The agent doesn’t have access to Secrets Manager. Only the request Lambda interceptor—a deterministic function not influenced by model behavior—retrieves credentials. This isolation is designed to mitigate the risk of adversarial prompts instructing the model to access or exfiltrate authentication credentials, even if the agent is compromised.
Step 4: Construct the Basic Auth header
The request Lambda interceptor constructs the Basic Auth header using the system credential retrieved for the downstream tool.
The following code shows the core transformation logic.
Conclusion
A request Lambda interceptor in Amazon Bedrock AgentCore Gateway can bridge the gap between the authentication patterns supported by the gateway and the authentication requirements of legacy tool APIs that haven’t yet migrated to modern authentication standards. As demonstrated in this post, the interceptor validates the inbound JWT, retrieves system credentials from Secrets Manager, and constructs the downstream tool’s Basic Auth header without modifying tool schemas or agent implementation.
This approach is an interim integration pattern, not a target architecture. It introduces a credential that must be synchronized between Secrets Manager and the tool’s identity store (such as Active Directory), adding operational overhead for rotation, drift detection, and lifecycle management. The recommended path is to modernize the downstream tool to accept OAuth 2.0, SAML, or OpenID Connect, eliminating stored credentials entirely. Until that modernization is complete, the interceptor isolates credential handling from the agent runtime, designed to help ensure that the agent—a non-deterministic system influenced by user prompts—does not have access to authentication secrets.
